1 relay module 5 Vdc 10A (assembled)

SKU TPX00170 Barcode 7630049204355 Show more
Original price €4,55 - Original price €4,55
Original price
€4,55
€4,55 - €4,55
Current price €4,55

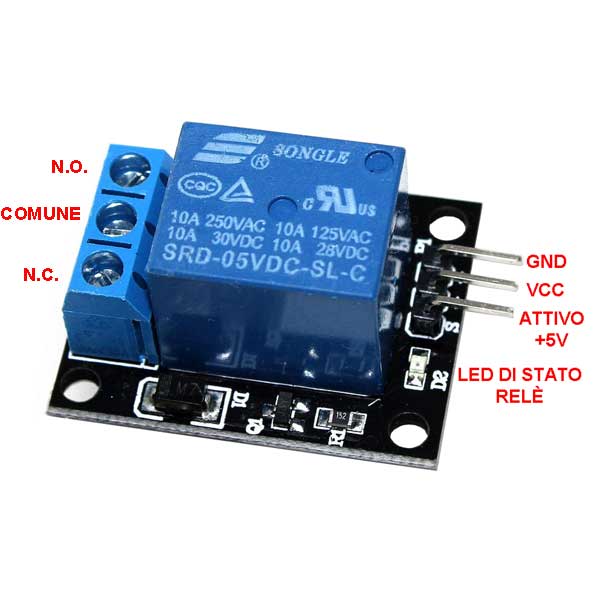

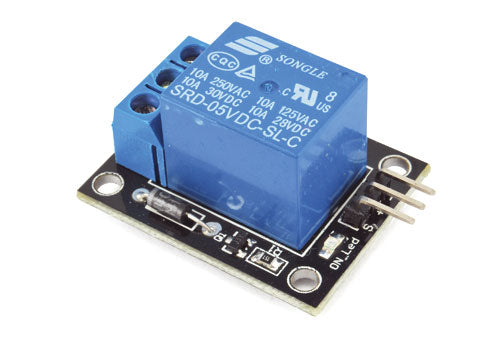

Module with 1 relay that allows you to turn on/off the load connected to it 240V/10A max.

Overview

This module is equipped with 1 relay that allows you to activate/deactivate the load connected to it 240V/10A (max).
The relay is activated by connecting the positive to 5 volts to the “S” pin.


Tech specs

  • Power supply: 5 VDC
  • Number of relays: 1
  • Output contacts: N.A. - Common - N.C.
  • Contact range: 10 A 250 VAC - 10 A 30 VDC
  • Activation voltage: 2.5 - 5 VDC
  • Dimensions (mm): 34x26x19
