Overview

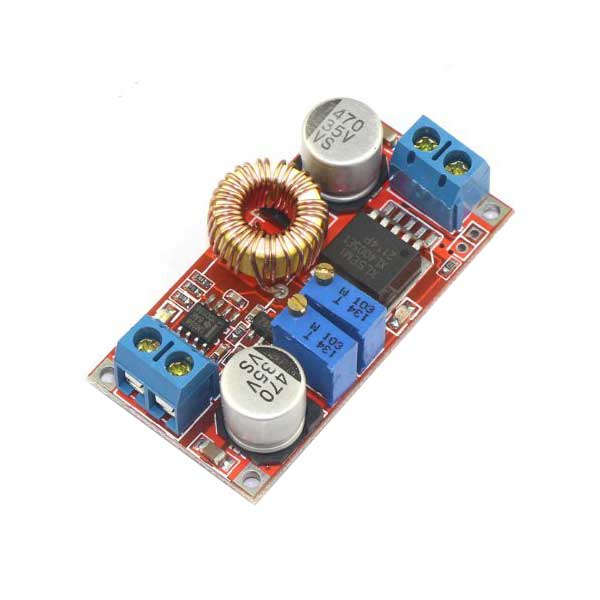

DC/DC Step-Down converter that allows to convert a continuous voltage input between 5 and 32 volts into an output voltage from 1.2 to 30 volts (adjustable via trimmer).
The maximum available current is about 5 A.
Tech specs
- Input voltage: from 5 Vdc to 32 Vdc
- Output voltage: from 1.2 Vdc to 30 Vdc (adjustable)
- Output current: 5 A
- Conversion efficiency: 90%
- Output ripple: 50 mV (max)
- Dimensions (mm): 51×26.3×14
- Operating temperature: from -40°C to +85°C
