Dipole Pentaband Waterproof Antenna

Code: X000016   /   Barcode: 813747020114
€3,99
V

Overview

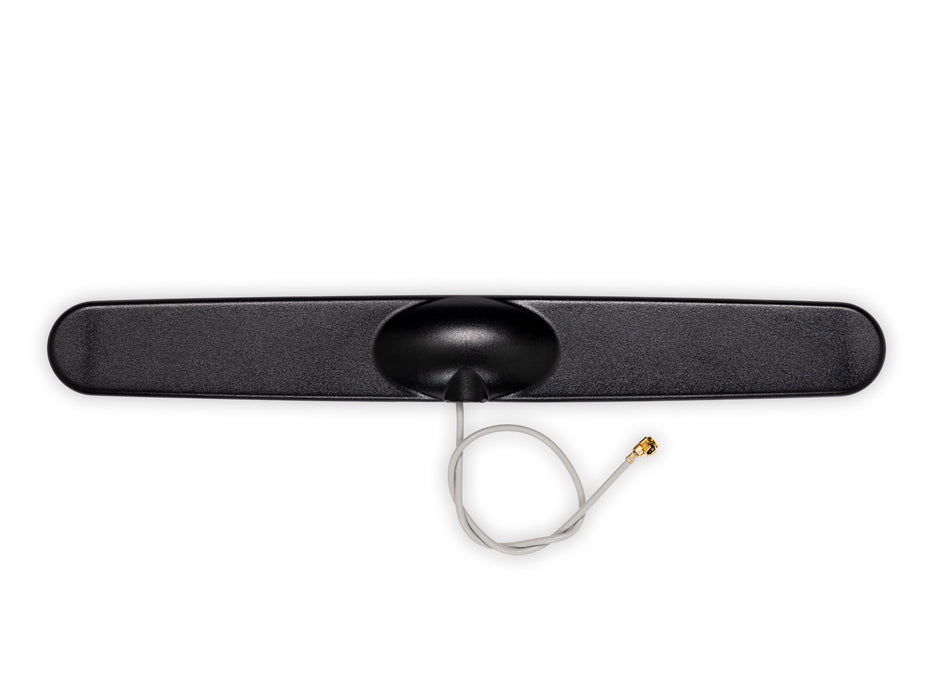

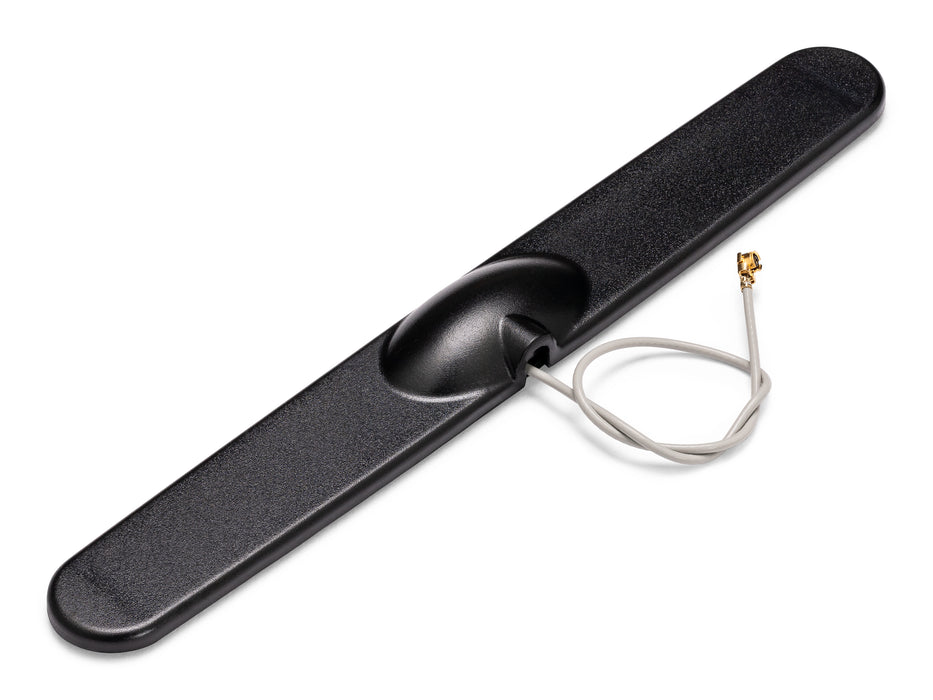

A single solution to connect your smart devices to the Cloud. The antenna supports the GSM 850 / 900 / 1800 / 1900 MHz and UMTS bands. Designed for small devices, this antenna will work when used as wireless terminal, gateway, or access point. It is a ground plane independent design, housed in a robust waterproof plastic cover. It can be used outdoors in any kind of telemetry project, as well as for discreet in-vehicle installations. It comes with a high grade adhesive tape that allows the antenna to be attached to any surface. Please note, the antenna is not meant to be mounted on large metallic surfaces, since it would affect the antenna’s coverage. It works great on other materials such as glass, plastic, wood, or cardboard.

List of Compatible Boards

This penta-band antenna is supported by the following official Arduino boards:

You can connect the antenna to any other boards with a micro UFL connector.


Tech specs

The antenna has been characterized for 5 different bands as shown in the following tables:

Band Gain VSWR Impedance Polarization
GSM 850 (824-894 MHZ) <0 dBi <2 50 OHM linear
GSM 900 (890-960 MHZ) <1 dBi <2 50 OHM linear
GSM 1800 (1710-1880 MHZ) <1 dBi <2 50 OHM linear
GSM 1900 (1850-1990 MHZ) <0 dBi <2,2 50 OHM linear
 UMTS (1900-2200 MHz) <0 dBi <2,5 50 OHM linear
Other characteristics:
  • Dimensions: 130x16x5 mm
  • Cable length: 120 mm / 4.75 inch
  • Weight: 1 gramm
  • Connector: micro UFL
  • Housing: plastic
  • Support: double-sided tape

Documentation

OSH: Schematics

Get the antenna’s official datasheet here:

DATASHEET IN .PDF

SIZE SPECS IN .PDF
