Modulino™ Thermo
Measure temperature and humidity for environmental monitoring, indoor climate control, and many IoT applications!
Overview

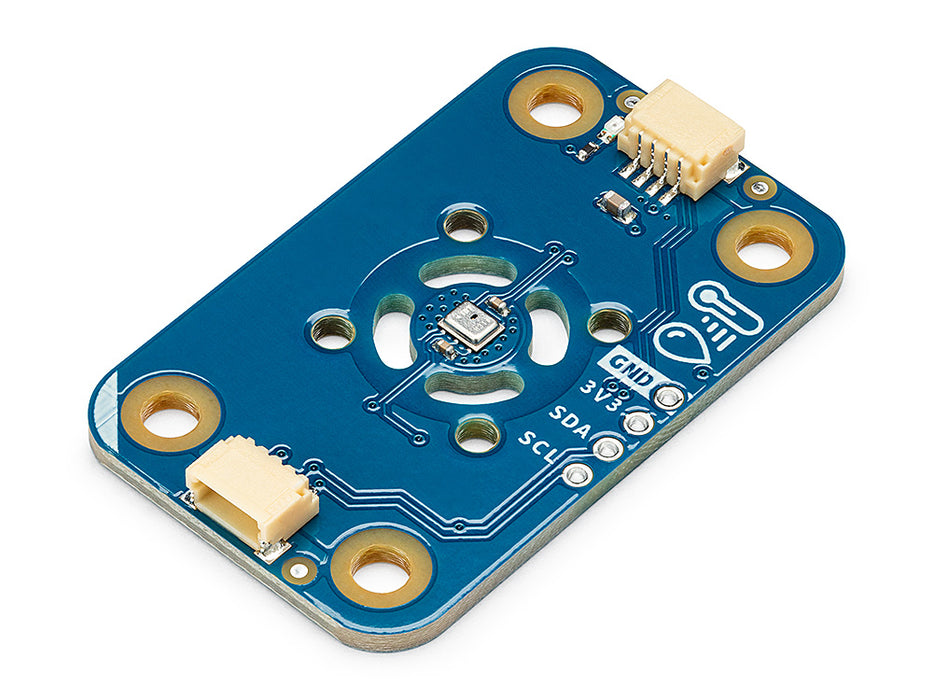

Modulino® Thermo measures the temperature and humidity in your room, greenhouse, warehouse, and more!
The Arduino Modulino® collection includes a variety of plug-and-play smart components that transform complex electronics into simple, interactive projects with minimal code and maximum creativity.
Discover a new generation of ready-to-use sensors and actuators that simplify any build. Designed for makers, educators, and professionals, Modulino® nodes connect effortlessly via Qwiic cables and work together as a unified system thanks to daisy-chain technology.
Start easy, advance quickly
Both beginners and experienced developers can implement sophisticated features thanks to preconfigured Arduino Cloud templates and a dedicated Modulino® library (supporting both Arduino language and MicroPython).
And after the first project is done? Consistent design across all Modulino® nodes gives you the flexibility to swap them and integrate them into a variety of new ideas, while breakout pins allow advanced users to push customization further.
Key benefits
- Plug-and-play connectivity:
Quickly connect Modulino® nodes to Arduino® UNO R4 WiFi or Nano boards, using the Nano Connector Carrier for fast, reliable integration. - Robust, ready-to-use design:
Preassembled, compact modules built to support demanding edge IoT projects. - Effortless expansion:
Easily add new sensors, actuators, or controllers without redesigning your hardware. - Seamless Arduino ecosystem integration:
Leverage Arduino software, Cloud tools, and community support to accelerate development.
Meet all the Modulino® nodes!
In addition to Modulino® Thermo, you can explore all the Modulino® nodes in the range!
- Modulino® Knob: for super-fine value adjustments
- Modulino® Pixels: eight LEDs to shine bright, dim down, or change color – you choose!
- Modulino® Movement: to perfectly capture movements like pitch, roll or tilt
- Modulino® Buzzer: to generate your own alarm sounds or simple tunes
- Modulino® Distance: a time-of-flight proximity sensor to measure distances with precision
- Modulino® Buttons: three buttons for quick project navigation
Or, consider the Arduino Plug and Make Kit to get them all at once – as part of our easiest starter kit ever!
Need help?
Comprehensive resources are available through dedicated documentation pages, featuring tutorials and technical specifications for each Modulino®.
Tech Specs
| Board Name | Modulino® Thermo | |
| SKU | ABX00103 | |
| Featured component | GXHT30C | |
| I2C Address | 0x45 (0x44) | |
| Connector | Qwiic | I2C connection via Qwiic |
| Power | Qwiic connector | 3.3V |
| Pins | 3.3V | |
| Dimensions | Weight | 3.6 g |
| Width | 25.36 mm | |
| Length | 41 mm | |
| Accessories included | QWIIC cable (5 cm) | |
Conformities
Resources for Safety and Products
Manufacturer Information
The production information includes the address and related details of the product manufacturer.
Arduino S.r.l.
Via Andrea Appiani, 25
Monza, MB, IT, 20900
https://www.arduino.cc/
Responsible Person in the EU
An EU-based economic operator who ensures the product's compliance with the required regulations.
Arduino S.r.l.
Via Andrea Appiani, 25
Monza, MB, IT, 20900
Phone: +39 0113157477
Email: support@arduino.cc
Learn More
Get Inspired
FAQs
What kind of data can I expect to read from a Modulino® Thermo?
The Modulino® Thermo node provides you with two primary environmental readings: relative humidity, indicating the amount of moisture in the air, and temperature, measuring the ambient heat level.
Has the Modulino® Thermo changed?
Yes. The latest revision of Modulino® Thermo uses the GXHT30C temperature and humidity sensor, replacing the HS3003 used in the first version. You’ll get the same temperature and humidity readings, but the I2C address and minimum library version have changed (see below).
How can I tell which version of Modulino® Thermo I have?

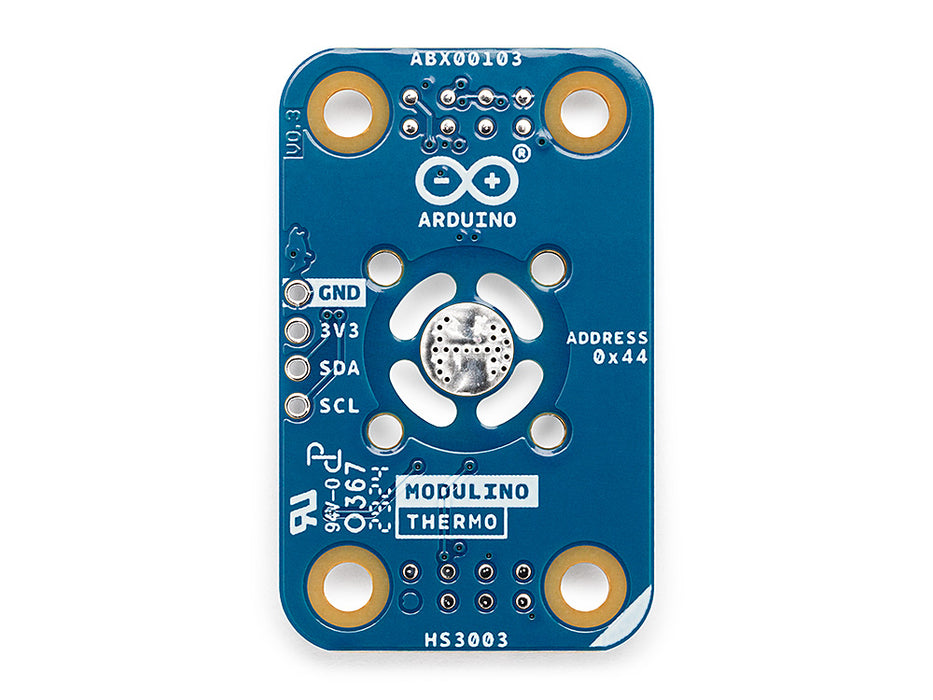

On the back of the Modulino® Thermo node, you’ll find the name of the sensor printed on the board: HS3003 on the original version, GXHT30C on the new version. You can also run an I2C scanner sketch: the original version responds at address 0x44, and the new version responds at 0x45 by default.
What is the I2C address of the Modulino® Thermo?
Original version (HS3003): 0x44 (fixed)
New version (GXHT30C): 0x45 by default. The sensor can also be set to 0x44 using the solder jumper, but we recommend keeping 0x45 if you’re using the Modulino® library (see below).
Which library version do I need for the new Modulino® Thermo?
You need the Modulino® library version 0.10.0 or later. Earlier versions only recognize the original HS3003 version at 0x44 and won’t detect the new module. Update the library from the Library Manager in Arduino IDE (or your preferred environment) before using it. Version 0.10.0 and later support both the original and new versions of Modulino® Thermo, so existing projects keep working.
Can I use the new Modulino® Thermo at address 0x44?
Yes, but not with the Modulino® library. To stay compatible with the original version, the library treats any Modulino® Thermo at 0x44 as the original HS3003 version, which can lead to conflicts or incorrect readings with the new sensor. If you choose 0x44, use a standalone library for the GXHT30C sensor instead.

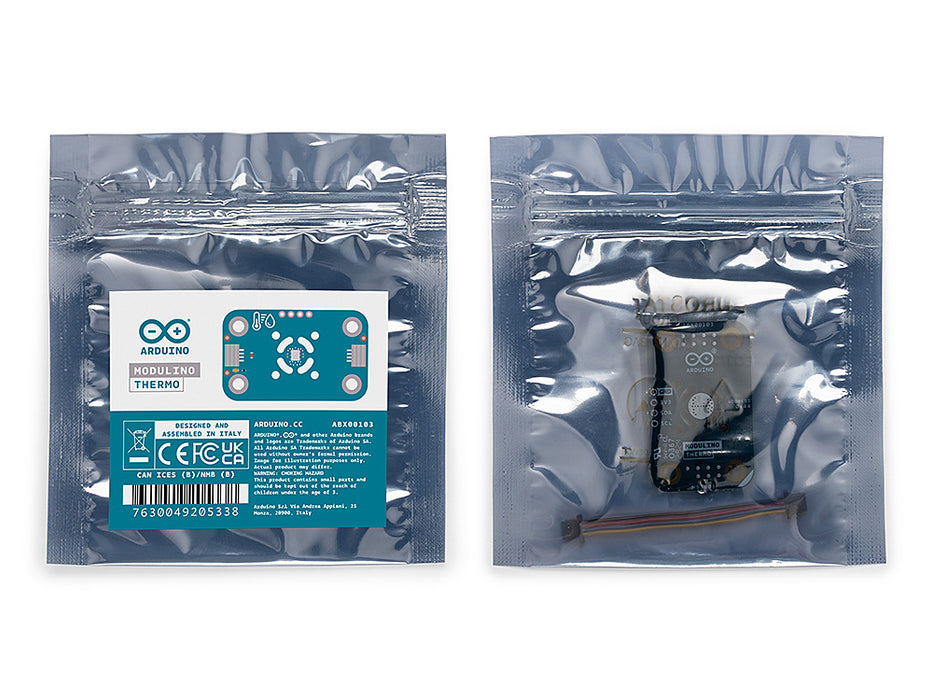

Is a Qwiic cable included with the Modulino® node?
Yes, each Modulino® node is packaged with a 5 cm Qwiic cable, so you can get started right away.
Are the Modulino® nodes compatible with other Qwiic devices?
Yes, the Modulino® nodes are designed to be compatible with other devices that adhere to the Qwiic standard and operate at 3.3V. Always double-check the voltage compatibility of any Qwiic devices you intend to use together.
What voltage do the Modulino® nodes operate at?
The Modulino® nodes are designed to operate at 3.3V. Ensure that your microcontroller or other Qwiic devices provide this voltage level to avoid damage.
