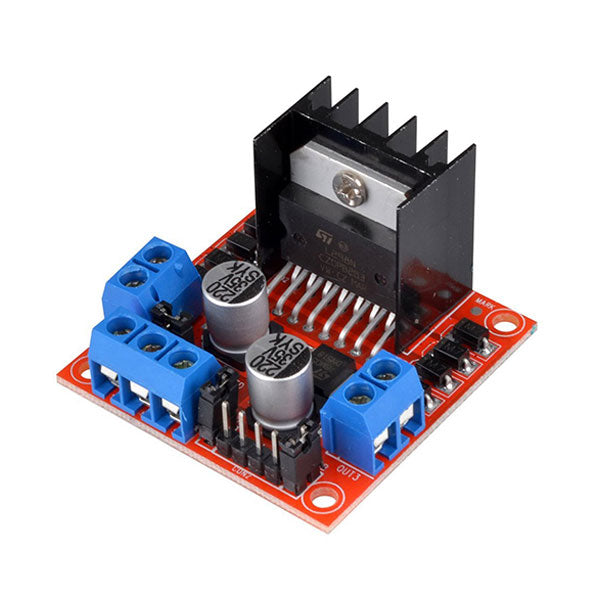

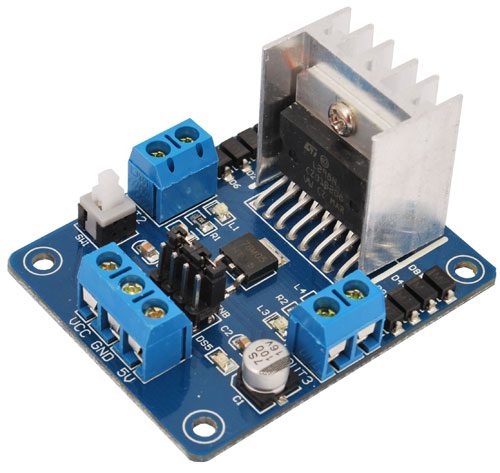

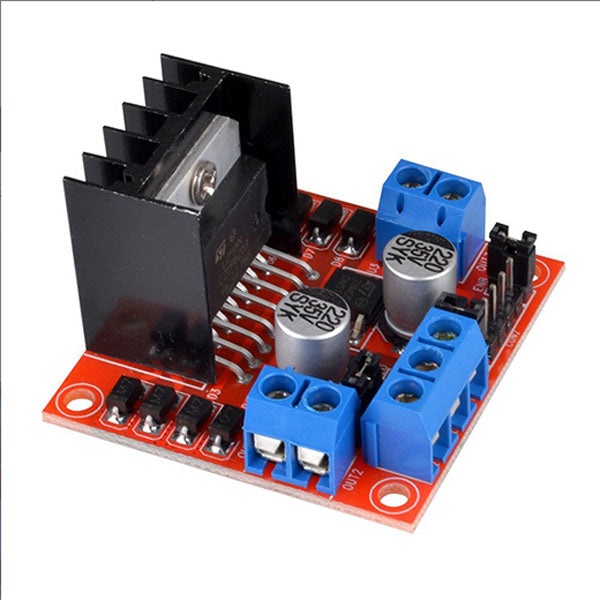

L298 driver for DC/Stepper motors
Based on the ST L298N chip, this module is designed to accept standard TTL logic levels and drive inductive loads such as relays, solenoids, DC motors, and stepper motors.
Overview
Based on the ST L298N chip, this module is designed to accept standard TTL logic levels and drive inductive loads such as relays, solenoids, DC motors, and stepper motors.
It has the ability to reverse the motor rotation direction and features control inputs for stepper and DC motors, motor direction indication LEDs, power presence LEDs, and a base with 4 mounting holes. The control logic power supply voltage ranges from 4.5 to 5.5V, and the motor power supply voltage ranges from 6.5 to 30V DC, with a peak output current of 2A per channel.
Tech specs
- Driver: L298
- Motor power supply voltage: 6.5 to 30V
- Peak output current per channel: 2A
- Control logic power supply voltage: 4.5 to 5.5V - 36mA
- Control level: High: 4.5-5.5V Low: 0V
- Operating temperature: -25°C to +130°C
- Dimensions (mm): 54 x 43 x 30
- Weight: 33g
