Microwave motion radar

SKU TPX00169 Barcode 7630049204348 Show more
Original price €1,82 - Original price €1,82
Original price
€1,82 - €1,82
Current price €1,82

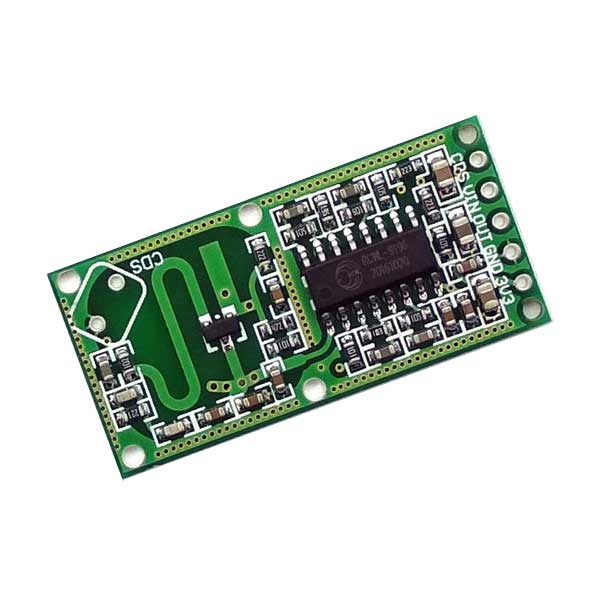

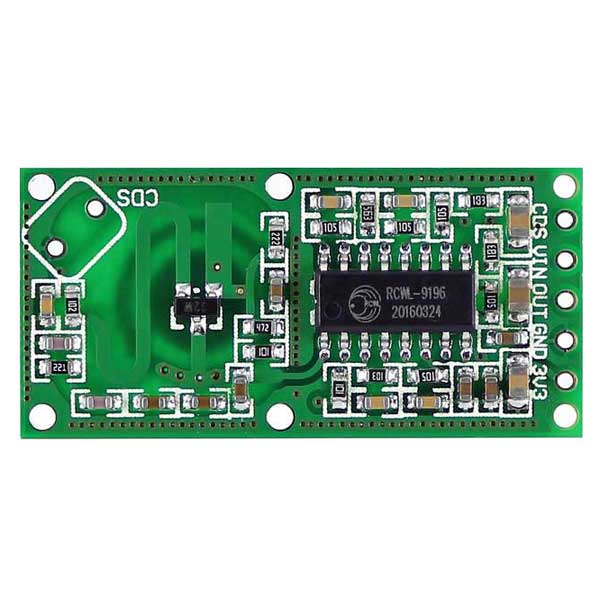

The RCWL-0516 is a small and compact microwave motion sensor based on the Doppler effect.


The RCWL-0516 is particularly suitable as an alternative to using a PIR motion sensor.
When it detects a moving object, the output changes from a low logic level to a high level (3.3 volts). Appropriately interfaced (Arduino, Fishino or other), it can be used for the automatic opening of electric doors and gates, automatic lighting.

Detection range is about 9 meters.

Tech specs

  • Power supply: from 4 volts to 28 volts
  • Consumption: typical 2.8 mA; max. 3 mA
  • Detection distance: from 5 to 9 meters
  • Transmission power: typical 20 mW; max. 30 mW
  • Output voltage and current: 3.2-3.4 volts - 100 mA
  • Operating temperature: from -20°C to +80°C
  • Pin definition: 3V3: 3.3 volt output voltage
  • GND: negative power supply
  • OUT: when it detects a moving object, it changes from a low level to a high level (3.3 volts)
  • VIN: positive power supply from 4 volts to 28 volts
  • CDS: if kept low, less than 0.7 volts, the output will always be low even in the presence of motion
